SGP1610AC(LS)

16.0A GLASS PASSIVATED RECTIFIERS

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Product Specifications

Product Parameters

TotalCapacitance CT (pF) 100
AEC Qualified No
Compliance (Only Automotive supports PPAP) Standard
Product Type Standard Recovery Rectifier
Configuration Single
Power Rating (W) 17.6 W
MaximumAverageRectifiedCurrent IO (A) 16 A
Peak ForwardSurge CurrentIFSM (A) 225 A
Peak RepetitiveReverse VoltageVRRM (V) 1000 V
Forward Voltage Drop VF (V) 1.1 V
@ IF (A) 16 A
Maximum ReverseCurrent IR (µA) 10 µA
@ VR (V) 1000 V

Related Content

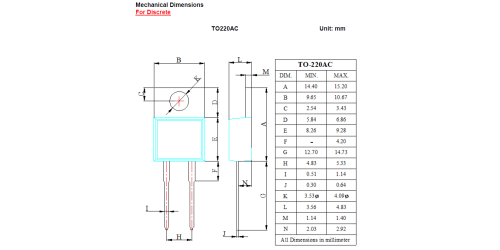

Packages

Technical Documents

Recommended Soldering Techniques

TN1.pdf

RoHS CofC
