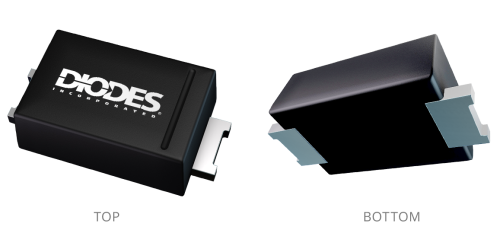

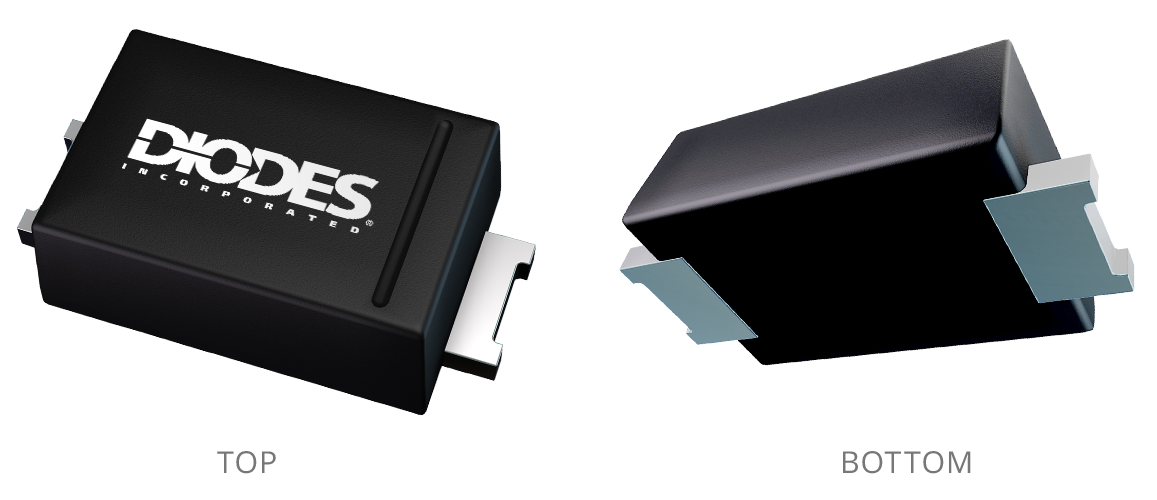

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to SBR

SBR140S1FQ

1A SUPER BARRIER RECTIFIER

Download Datasheet

Contact Sales

Description

The SBR140S1FQ is a single rectifier packaged in SOD123F. Offering low VF and excellent high temperature stability this device is ideal for use in general rectification applications.

Feature(s)

Low Forward Voltage (VF) Minimizes Conduction Losses and Improving Efficiency
Reduced High Temperature Reverse Leakage; Increased Reliability against Thermal Runaway Failure in High Temperature
Operation
Patented Super Barrier Rectifier SBR® Technology
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
The SBR140S1FQ is suitable for automotive applications requiring specific change control; this part is AEC-Q101
qualified, PPAP capable, and manufactured in IATF 16949 certified facilities. https://www.diodes.com/quality/product-definitions/

Application(s)

Boost Diode
Blocking Diode

Product Specifications

Product Parameters

@ TerminalTemperature TT (ºC)	-
AEC Qualified	Yes
Compliance (Only Automotive supports PPAP)	Automotive
Configuration	Single
Maximum Average Rectified Current IO (A)	1
Peak Repetitive Reverse Voltage VRRM (V)	40
Peak Forward Surge Current IFSM (A)	30
Forward Voltage Drop V_F (V)	0.51
@ IF (A)	1
Maximum Reverse Current IR (μA)	100
@ VR (V)	40
Total Capacitance CT (pF)	110
