PI6C20400A

1:4 Clock Driver for Intel PCIe® Chipsets

NOTE: Datasheet may not yet reflect updated package obsolescence/phase out status or Package Drawing. Please refer to the PRODUCT OPTIONS tab for the most up to date package options and drawings. Please refer to PCN/PDN tabs for most current package obsolescence/phase out status.
Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Product Description

The  PI6C20400A is a PCIe® 2.0 compliant high-speed, low-noise differential clock buffer designed to be companion to PI6C410BS. The device distributes the differential SRC clock from PI6C410BS to four differential pairs of clock outputs either with or without PLL. The clock outputs are controlled by input selection of SRC_STOP#, PWRDWN# and SMBus, SCLK and SDA. When input of either SRC_STOP# or PWRDWN# is low, the output clocks are Tri-stated. When PWRDWN# is low, the SDA and SCLK inputs must be Tri-stated.

Features

  • Phase jitter filter for PCIe® 2.0 application
  • Four Pairs of Differential Clocks
  • Low skew < 50ps
  • Low jitter < 50ps cycle-to-cycle
  • < 1 ps additive RMS phase jitter
  • Output Enable for all outputs
  • Outputs tristate control via SMBus
  • Programmable PLL Bandwidth
  • 100 MHz PLL Mode operation
  • 100 - 400 MHz Bypass Mode operation
  • 3.3V Operation
  • Packaging (Pb-free and Green):
    →28-Pin SSOP (H28)
    →28-Pin TSSOP (L28)

Product Specifications

Product Parameters

Compliance(Only Automotive supports PPAP) Standard
Function PCIe clock buffer
Input Type(s) HCSL
Jitter RMS (ps) 50
Number of Outputs 4
Output Frequency (MHz) 100
Output Type(s) HCSL
Skew (PS) 50
Supply Voltage (V) 3.3
Ambient or Junction Temperature (°C) -40 to 85

Technical Documents

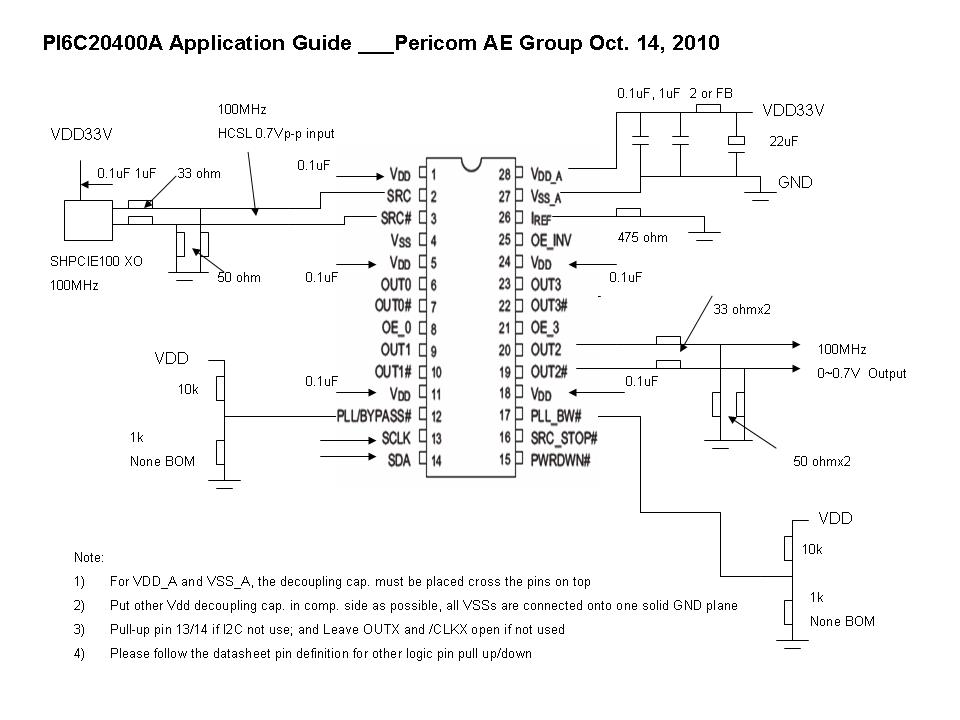

Application information

Evaluation Boards and User Guides

Design tool model software

Recommended Soldering Techniques

TN1.pdf

Orderable Part Number Status Package Environmental Compliance Packing Buy from Distributor /
Contact Sales
Request Samples
Qty. Carrier
PI6C20400AHE Active SSOP-28 GREEN 47 TUBE Contact Sales Request Sample
PI6C20400AHEX Active SSOP-28 TPGP 2000 T&R Contact Sales Request Sample
PI6C20400ALE Obsolete TSSOP-28 GREEN 50 TUBE
PI6C20400ALEX Active TSSOP-28 TPGP 3000 T&R

PI6C20400ALEX

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Mouser Electronics Inc. 15165 12/5/2022 South America, North America, Asia, Europe, Middle East Buy Now
Request Sample

Environmental Compliance Legend:
LFF: Pb-Free Finish and RoHS 5/6
TLFP: Totally Pb-Free Product and RoHS 6/6
LFGP: Pb-free Finish and Green Product, RoHS 5/6 and Halogen Free
TPGP: Totally Pb-Free and Green Product, RoHS 6/6 and Halogen Free
GREEN: Halogen-free and RoHS compliant
RoHS: RoHS compliant but NOT halogen-free

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2325 – Rev 3 (Interim Update) 2018-04-20 2020-11-20 Fab Porting from Global Foundries to MagnaChip
