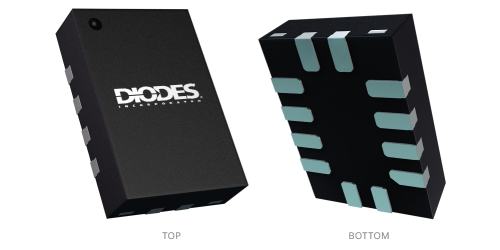

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Audio

PAM8945

4.0W Mono Class-G with Integrated Boost Converter and Battery Tracking AGC

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The PAM8945 is a high efficiency Class-G audio power amplifier with an integrated boost converter. It can drive up to 4.0W (10% THD+N) into a 4Ω speaker with a power supply as low as 2.8V.

The built-in boost converter generates the voltage required for the output stage providing a much louder audio and consistent output power regardless of the battery voltage. The PAM8945 features battery tracking AGC function which adjusts the amplifier gain to limit battery current at lower battery voltage.

Combining battery tracking and the high efficiency (typically 85%) the PAM8945 provides high quality audio for extended periods of time compared to a standard Class D amplifier and a battery.

The PAM8945 features DC input protection and all outputs are fully protected against output-to-output shorts. The PAM8945 is available in tiny TQFN2030-12L package.

Feature(s)

  • Built-In Battery Tracking Automatic Gain Control (AGC)
  • High Efficiency Integrated Boost Converter Over 85%
  • 4.0W into an 4Ω Load from a 3.6V Supply
  • Operates from 2.8V to 5.2V
  • Efficient Class-D Prolongs Battery Life
  • Minimized ON/OFF Pop Noise
  • Superior Low Noise
  • High PSRR
  • DC Input Protection
  • Auto-Recovery Short-Circuit Protection

Application(s)

  • Cell Phones and Tablets
  • GPS
  • Portable and Batery Powered Electronics
  • Active and Wireless Speakers

Product Specifications

Product Parameters

Minimum VDD (V) 2.8
AEC Qualified No
Maximum VDD (V) 5.2 V
IQ (mA) 4 mA
Power/CH (W) @ THD=10% 4
Power/CH (W) @ THD=1% 3.2
Mono or Stereo Mono
BTL Yes
SE No
Class-D or AB D
Power Limit No
Anti-Sat No
Headphone Out No
Efficiency (%) 86 %
Volume/ Gain AGC
Gain Min N/A dB
Gain Max 20 dB
SNR 95 dB
PSRR 70 dB
Special Feature Boost Converter Built-in
