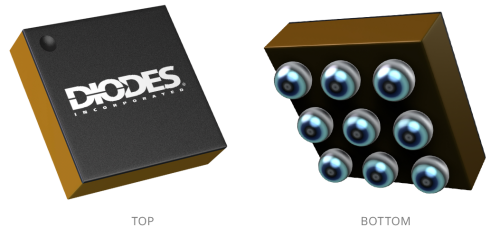

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Audio

PAM8012

3.2W Mono Class D with Anti-Saturation and NCPL

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The PAM8012 is a 2.0W mono filterless class-D amplifier with high PSRR and differential input that reduce noise. Features like 90% efficiency and small PCB area make the PAM8012 Class-D amplifier ideal for cellular handsets. The filterless architecture requires no external output filter, fewer external components, less PCB area and lower system costs, and simplifies application design. The PAM8012 features anti-saturation function which detect output signal clip due to the over input level and keep the output nonsaturation automatically to get the excellent sound quality. The maximum output power without clip can be set by one resistor at PL pin that to prevent the speaker to be damaged. The PAM8012 features short circuit protection and over temperature protection. The PAM8012 is available in tiny WCSP9 (1.3mm x 1.3mm) and eMSOP10 packages.

Feature(s)

  • 1.0W/2.0W @ <1% THD Output with a 8Ω/ 4Ω Load at 5V Supply
  • Maximum Output Power Can Be Set by One External Resistor
  • Minimized ON/OFF Pop Noise
  • Superior Low Noise
  • High PSRR
  • Supply Voltage from 2.5V to 5.5V
  • Auto Recovering Short Circuit Protection
  • Over Temperature Protection
  • 9 Ball, 1.3mm x 1.3mm, 0.4mm Pitch WCSP and eMSOP10 Packages
  • Application(s)

  • Wireless or Cellular Handsets and PDAs
  • Portable Navigation Devices
  • General Portable Audio Devices
  • Product Specifications

    Product Parameters

    Minimum VDD (V) 2.5
    AEC Qualified No
    Maximum VDD (V) 5.5 V
    IQ (mA) 4.2 mA
    Power/CH (W) @ THD=10% 3.19
    Power/CH (W) @ THD=1% 2.58
    Mono or Stereo Mono
    BTL Yes
    SE No
    Class-D or AB D
    Power Limit Yes
    Anti-Sat Yes
    Headphone Out No
    Efficiency (%) 90 %
    Volume/ Gain Fixed
    Gain Min N/A dB
    Gain Max 18 dB
    SNR 95 dB
    PSRR 95 dB
    Special Feature N/A

    Related Content

    Packages

    Technical Documents

    Evaluation Board User Guides

    Recommended Soldering Techniques

    TN1.pdf

    Orderable Part Number Buy from Distributor / Contact Sales Request Samples
    PAM8012AZN

    PAM8012AZN

    Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
    Digi-Key Electronics 4566 10/3/2022 Europe, Asia, North America Buy Now
    Farnell, An Avnet Company 5553 10/3/2022 England Buy Now
    Mouser Electronics Inc. 5362 10/3/2022 South America, North America, Asia, Europe, Middle East Buy Now
    Request Sample

    Product Change Notices (PCNs)

    A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

    PCN # Issue Date Implementation Date Subject
    PCN-2279 2017-05-02 2017-08-02 Addition of Assembly/Test Site
