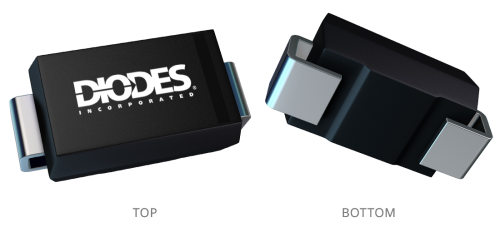

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Fast/Ultra-Fast Rectifiers

MURS160A

1.0A SURFACE MOUNT SUPER-FAST RECTIFIER

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Feature(s)

  • Glass Passivated Die Construction
  • Super-Fast Recovery Time for High Efficiency
  • Surge Overload Rating to 35A Peak
  • Ideally Suited for Automated Assembly
  • Lead-Free Finish; RoHS Compliant
  • Halogen and Antimony Free. “Green” Device
  • For automotive applications requiring specific change
    control (i.e. parts qualified to AEC-Q100/101/200, PPAP
    capable, and manufactured in IATF 16949 certified facilities),
    please contact us or your local Diodes representative.
    https://www.diodes.com/quality/product-definitions/

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) Standard
AEC Qualified Yes
Product Type SUPER FAST RECOVERY RECTIFIER
Configuration Single
Power Rating (W) 1.25 W
MaximumAverageRectifiedCurrent IO (A) 1 A
Maximum Peak Forward Surge Current IFSM (A) 35 A
Peak RepetitiveReverse VoltageVRRM (V) 600 V
Forward Voltage Drop VF (V) 1.25 V
@ IF (A) 1 A
Maximum ReverseCurrent IR (µA) 5 µA
@ VR (V) 600 V
Reverse Recovery Time trr (ns) 50 ns
TotalCapacitance CT (pF) 13 pF

Related Content

Packages

Technical Documents

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

Orderable Part Number Buy from Distributor / Contact Sales Request Samples
MURS160A

MURS160A

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Digi-Key Electronics 4935 9/29/2022 Europe, Asia, North America Buy Now
Request Sample
MURS160A-13

MURS160A-13

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Farnell, An Avnet Company 4774 9/30/2022 England Buy Now
Request Sample

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2550 2021-12-20 2022-06-20 Device End of Life (EOL)
