HDS10M

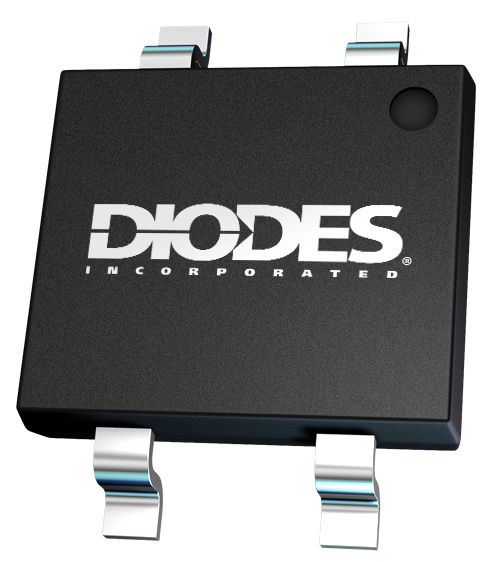

1.0A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

Download Datasheet

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Feature(s)

Glass Passivated Die Construction
Ideally Suited for Automated Assembly
Low Profile Package: 1.00mm (Typ)
Flat Lead Plastic Package
Low Forward Voltage Drop
Ultra-Thin Profile for Space Constrained Applications
Lead-Free Finish; RoHS Compliant
Halogen and Antimony Free. “Green” Device

Application(s)

AC-DC Power Supply
LED lighting
Adapter
Battery Charger
Home Appliances
Office Equipment
Telecommunication Applications

Product Specifications

Product Parameters

AEC Qualified	No
Compliance (Only Automotive supports PPAP)	Standard
Forward Voltage Drop V_F (V)	0.95
TotalCapacitance C_T_(pF)	8.2 pF
MaximumAverageRectifiedCurrent I_O(A)	1 A
Peak RepetitiveReverse VoltageV_{RRM (V)}	1000 V
Maximum Peak Forward Surge Current I_{FSM (A)}	30 A
Maximum ReverseCurrent I_{R (µA)}	5 µA
