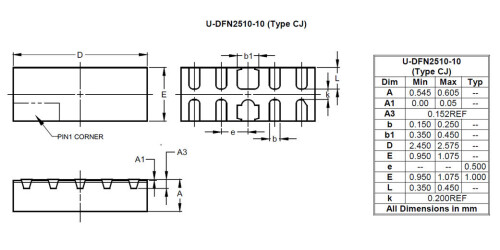

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.
4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY
Log in or register to manage email notifications about changes to datasheets or PCNs for this part.
This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players.
|Compliance (Only Automotive supports PPAP)||Standard|
|Channel Input CapacitanceCT Typ(pF)||0.55 pF|
|Reverse Standoff Voltage VRWM(V)||3.3 V|
|Breakdown VoltageVBR Min(V)||5 V|
|Typ Reverse Leakage Current IR @ VRWM Max(µA)||0.1 µA|
|Maximum Clamping Voltage @ MaxPeak Pulse CurrentVC(V)||9.5 V|
|VESD IEC61000-4-2 Contact Discharge(kV)||12 kV|
A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.
|PCN #||Issue Date||Implementation Date||Subject|
|PCN-2369||2019-01-29||2019-04-29||Qualification of JCET as an Additional Assembly & Test Site for Select Discrete TVS Products in DFN2510 Package|
|PCN-2360||2018-06-29||2018-09-29||Qualification of Additional Wafer Source for Select TVS Products|
