DMTH4M70SPGWQ

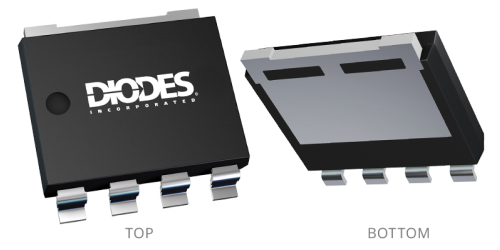

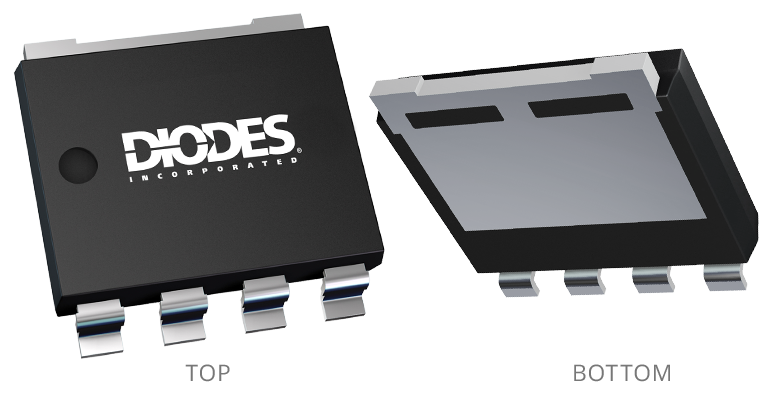

40V +175°C N-CHANNEL ENHANCEMENT MODE MOSFET PowerDI8080-5

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP

Feature(s)

  • Rated to +175°C – Ideal for High Ambient Temperature
    Environments
  • 100% Unclamped Inductive Switching (UIS) Test in Production—
    Ensures More Reliable and Robust End Application
  • High Conversion Efficiency
  • Low RDS(ON)—Minimizes Power Losses
  • Wettable Flank for Improved Optical Inspection
  • Fast Switching Speed
  • Low Input Capacitance
  • Lead-Free Finish; RoHS Compliant
  • Halogen and Antimony Free. “Green” Device
  • The DMTH4M70SPGWQ is suitable for automotive applications
    requiring specific change control; this part is AEC-Q101
    qualified, PPAP capable, and manufactured in IATF 16949
    certified facilities.
    https://www.diodes.com/quality/product-definitions/

Application(s)

  • Engine Management Systems
  • Body Control Electronics
  • DC-DC Converters

Product Specifications

Product Parameters

AEC Qualified Yes
Compliance (Only Automotive(Q) supports PPAP) Automotive
Polarity N
ESD Diodes (Y|N) No
|VDS| (V) 40 V
|VGS| (±V) 20 ±V
|IDS| @TC = +25°C (A) 460 A
PD @TA = +25°C (W) 5.6 W
PD @TC = +25°C (W) 428 W
RDS(ON)Max @ VGS(10V)(mΩ) 0.7 mΩ
|VGS(TH)| Min (V) 2 V
|VGS(TH)| Max (V) 4 V
QG Typ @ |VGS| = 10V (nC) 117.1 nC
CISS Typ (pF) 10053 pF
CISS Condition @|VDS| (V) 20 V
