DMP2160UW (Not Recommended for new design)

NRND = Not Recommended for New Design

P-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) No
CISS Condition @|VDS| (V) 10
CISS Typ (pF) 46.1
ESD Diodes (Y|N) Yes
|IDS| @TA = +25°C (A) 0.6
PD @TA = +25°C (W) 0.4
Polarity P
QG Typ @ |VGS| = 10V (nC) N/A
QG Typ @ |VGS| = 4.5V (nC) 0.5
AEC Qualified No
RDS(ON)Max @ VGS(1.8V)(mΩ) 2000
RDS(ON)Max @ VGS(10V)(mΩ) N/A
RDS(ON)Max @ VGS(2.5V)(mΩ) 1500
RDS(ON)Max @ VGS(4.5V)(mΩ) 1000
|VDS| (V) 20
|VGS| (±V) 8
|VGS(TH)| Max (V) 1
|VGS(TH)| Min (V) 0.5

Related Content

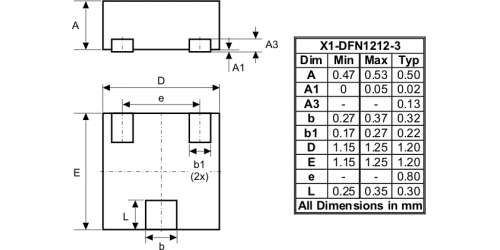

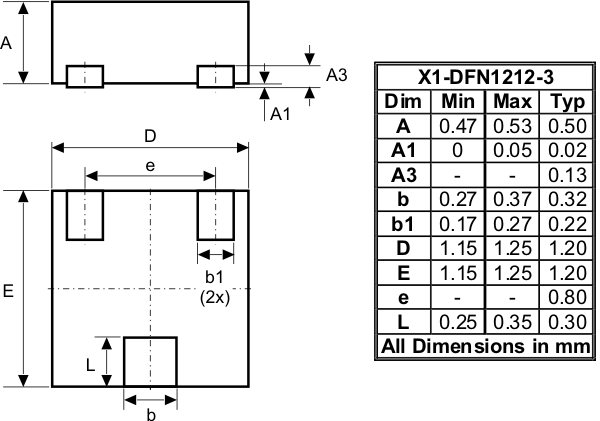

Packages

Technical Documents

SPICE Model

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2389 2019-02-05 2019-08-05 Device End of Life
