DMN15M5UCA6

N-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This new generation MOSFET is designed to minimize the on-state
resistance (RSS(ON)) yet maintain superior switching performance,
making it ideal for high-efficiency power management applications.

Feature(s)

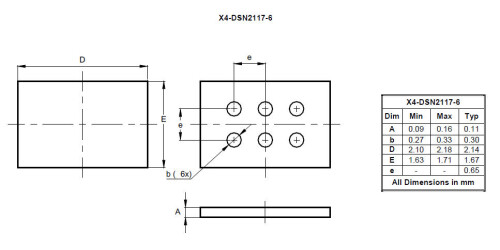

  • CSP with Footprint 2.14mm × 1.67mm
  • Height = 0.11mm for Low Profile
  • ESD Protection of Gate
  • Totally Lead-Free & Fully RoHS Compliant
  • Halogen and Antimony Free. “Green” Device
  • For automotive applications requiring specific change control
    (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and
    manufactured in IATF 16949 certified facilities), please
    contact us or your local Diodes representative.
    https://www.diodes.com/quality/product-definitions/

Application(s)

  • Battery Management
  • Load Switch
  • Battery Protection

Product Specifications

Product Parameters

AEC Qualified No
Compliance (Only Automotive(Q) supports PPAP) Standard
Polarity N+N
ESD Diodes (Y|N) Yes
|VDS| (V) 12 V
|VGS| (±V) 10.5 ±V
|IDS| @TA = +25°C (A) 16.5 A
PD @TA = +25°C (W) 2 W
RDS(ON)Max @ VGS(4.5V)(mΩ) 5.1 mΩ
RDS(ON)Max @ VGS(2.5V)(mΩ) 10 mΩ
|VGS(TH)| Min (V) 0.5 V
|VGS(TH)| Max (V) 1.3 V
CISS Typ (pF) 59 pF
CISS Condition @|VDS| (V) 10 V

Related Content

Packages

Applications

Technical Documents

SPICE Model

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2474 2020-12-16 2021-03-16 Qualification of Additional Wafer Source for Select Discrete Products
