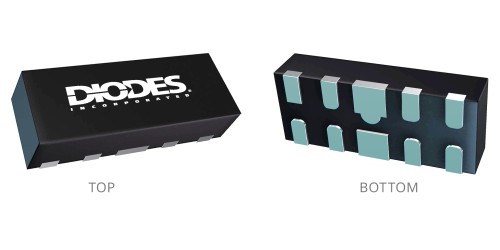

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Data Line Protection

D3V3X4U10LP

4-CHANNEL LOW CAPACITANCE ESD PROTECTION ARRAY

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players.

Feature(s)

  • Excellent Clamping Capability
  • Low capacitance is 0.5pF typ
  • Superior ESD protection exceeding +/-12kV(Contact) per IEC61000-4-2 standard
  • Peak pulse surge current Ipp up to 5A
  • Lead Free Finish/RoHS Compliant

Application(s)

  • Mobile Phone
  • Computers
  • Peripheral

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) Standard
AEC Qualified Yes
Configuration Quad (Uni-Directional)
Channel Input CapacitanceCT Typ(pF) 0.45 pF
Reverse Standoff Voltage VRWM(V) 3.3 V
Breakdown VoltageVBR Min(V) 5.5 V
Typ Reverse Leakage Current IR @ VRWM Max(µA) 0.1 µA
Maximum Clamping Voltage @ MaxPeak Pulse CurrentVC(V) 6 V
VESD IEC61000-4-2 Contact Discharge(kV) 8 kV
