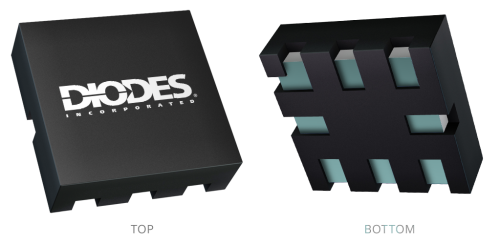

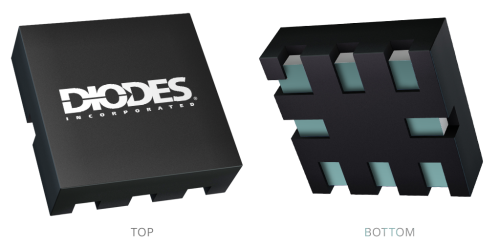

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Comparators


Dual Channel Low Power Comparator with Push-Pull Outputs

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.


AZV3002 is a dual channel comparators developed for new generation low-power comparator family for battery powered devices and systems requiring low voltage operation. The supply current each comparator typically consumes is 6μA to extend battery life. It is guaranteed to operate at a low voltage of 1.6V and is fully operational up to 5.5V. These features make the AZV3002 convenient for use in 1.8V, 3.0V and 5.0V systems and perfectly suitable for battery-powered devices from its low-power characteristics.

The AZV3002 has complementary push-pull output stage comprised of P- and N-Channel MOSFET for each comparator capable of driving rail-to-rail output swing.

The whole family is packaged in miniaturized packaging to reduce the space needed on PCB boards. The AZV3002 is available in U-FLGA1616-8.


  • Low Supply Current: 6μA (typical)
  • Wide Supply Voltage Range: 1.6~5.5V
  • Rail to Rail Input/Output Performance
  • Push-Pull Output Structure
  • Propagation Delay: 0.8μs (typical)
  • Low Input Bias Current: 1pA (typical)
  • No Phase Inversion with Overdrive Input Signals
  • Internal Hysteresis
  • U-FLGA1616-8: Available in “Green” Molding Compound (No Br. Sb.)
  • Totally Lead-Free & Fully RoHS Compliant
  • Halogen and Antimony Free. “Green” Device


  • Mobile Phones
  • Pad
  • Battery Powered Devices
  • Alarm and Security Systems

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) Standard
AEC Qualified No
Minimum Supply Voltage (V) 1.3 V
Maximum Supply Voltage (V) 5.5 V
Supply Current @ 5V (per Op Amp) (mA) 0.006 mA
Input Offset Voltage (Typ/Max) 0.5 to 3 mV
Input Bias Current typ (nA) 0.001 nA
Minimum Input Common Mode Voltage (V) 0 V
Maximum Input Common Mode Voltage (V) VCC V
Output Current Sink (mA) - mA
Number of Channels 2
Operating Ambient Temperature Range (°C) -40 to 85 °C
Output Type Push-Pull
