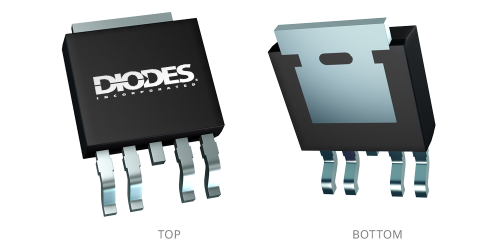

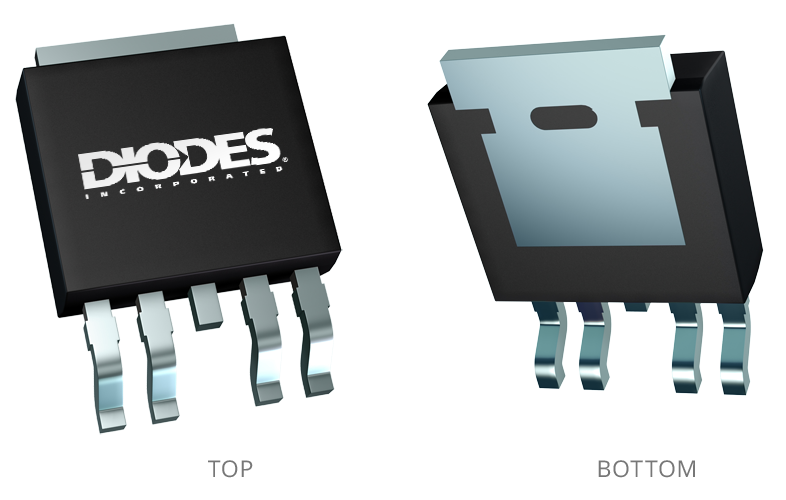

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

AP7583AQ

AUTOMOTIVE COMPLIANT WIDE INPUT VOLTAGE RANGE 150mA ULDO REGULATOR

Download Datasheet

Contact Sales

Description

The DIODES AP7583Q/AQ series are 300mA LDO for automotive battery-powered applications. The AP7583Q features 2.5µA quiescent current at light loads. Therefore, the AP7583Q/AQ are suitable solution to supply always power-on components, such as microcontroller (MCUs) and controller area network (CAN) transceivers.

The AP7583Q/AQ have features of wide input-voltage range, high accuracy, low-dropout voltage, current limit and ultra-low quiescent current, which make it ideal for automotive applications. The AP7583AQ has power-good indicator.

The IC consists of a voltage reference, an error amplifier, a resistor network for setting output voltage, a current-limit circuit for current protection, and a chip-enable circuit.

The AP7583Q/AQ both have 3.3V and 5V fixed output-voltage version, and adjustable version.

The AP7583Q is available in space-saving W-DFN2020-6 (SWP) (Type A1) package, and AP7583AQ has good power dissipation packages of MSOP-8EP, W-DFN2020-6 (SWP) (Type A1), and TO252-4 (Type C).

Feature(s)

Wide Input-Voltage Range: 3V to 42V
Maximum Output Current: 300mA
Low-Dropout Voltage: V_DROP = 320mV @I_OUT = 300mA (Typ)
Low Quiescent Current:
- AP7583Q is 2.5μA (Typ)
- AP7583AQ is 3μA (Typ)
High Output-Voltage Accuracy: ±5%
Compatible with Low ESR Ceramic Capacitor
Excellent Line/Load Regulation
Thermal Shutdown Function
Short Current Protection Function
Output Current Limit
AP7583AQ with Power-Good (PG) Output for Supply Monitoring and for Sequencing of Other Supplies
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
The AP7583Q/AQ are suitable for automotive applications requiring specific change control; these parts are AEC-Q100 qualified, PPAP capable, and manufactured in IATF16949 certified facilities. https://www.diodes.com/quality/product-definitions/

Application(s)

Powering MCUs and CAN/LIN transceivers
Automotive head units
EV and HEV battery management systems
Body control modules
Transmission control units (TCU)

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP)	Automotive
Output options	Adjustable & Fixed
Iout (A)	0.3
Vin (Max) (V)	42
Vin (Min) (V)	3
Vout (min)	1.2
Vout (max)	5
Fixed Vout (V)	3.3,5
Adjustabe VFB (V)	1.207
Iq (typ) (µA)	3
Accuracy 25C	1.50%
VDROPOUT (Max) (V) at Max Current and Max Ouput Voltage	0.5
PSRR (dB) 1kHz	70
Operating Temperature (Ambient) (°C)	-40 to 125 (°C)
Enable Active	H
Channels	1
Output Discharge	no
Power Good	open drain
Iq (max)(µA)	6
VCTL function	no
