AP43671

USB PD Controller with Integration of Synchronous Rectification Controller

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The DIODES™ AP43671 is a highly integrated and intelligent USB Type-C power delivery (PD) controller with an embedded synchronous rectification (SR) controller. It is ideally targeted for cost-performance-sensitive USB Type-C adaptors and charger applications.

The device supports USB PD3. 0 V1.2, and Programmable Power Supply (PPS) and Qualcomm QC4/QC4+ protocols. Leveraging its embedded MCU and supporting circuitry, the AP43671 can accommodate popular quick-charging protocols for firmware stored in One-Time-Programmable (OTP) memory.

To enable optimal system BOM and performance implementation of quick chargers, the AP43671 embeds a multiple-mode adaptive SR controller where its key performance and safety parameters can be fine-tuned by a built-in MCU.

The AP43671 also adopts a relatively small current-sensing resistor (5mΩ) that is used to provide accurate current measurements without sacrificing power consumption.

The AP43671 provides robust protection schemes, which includes a CC1/CC2 short protection against VBUS (up to 24V) as well as built-in OVP/OCP/SCP/OTP features to provide necessary safety protection.

Feature(s)

  • Supports USB PD3.0 Programmable Power Supply (PPS)
  • USB-IF PD3.0/PPS Certificated TID = 4999
  • Compatible with QC4/QC4+ protocol
  • MCU-based implementation for protocol decoding, application firmware, parameter fine-tuning and calibration.
  • OTP (One-Time-Programmable) for main protocol and application firmware
  • MTP (Multi-Time-Programmable) for system configuration options
  • Built-in regulator for CV and CC control, no need for external CC/CV reference circuitry
  • Ultra-low current consumption (550uA) at sleep mode
  • Supports power-saving mode to enable low standby power of chargers
  • Embed Synchronous Rectification (SR) Controller, which supports Adaptive Quasi-Resonant (QR) and Continuous Conduction Mode (CCM) for matching PWM controllers.
  • Small current-sensing resistor (5 mΩ) for efficiency improvement
  • Adaptive gate drive for external N-MOSFET output enable switch
  • Supports e-marker cable detection and VCONN power (20mA)
  • Supports SCP/OTP/OVP/UVP with auto-restart
  • CC1/CC2 pins shorted to VBUS protection up to 24V
  • Minimum system BOM components for quick charger implementations.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)
  • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative.

https://www.diodes.com/quality/product-definitions/

Application(s)

  • Battery chargers for smart phones, table PCs, and any USB Type-C PD-equipped mobile devices
  • Wall and travel chargers for AC-DC adaptors (USB Type-C-equipped Notebook PCs)

Product Specifications

Product Parameters

Protocols Supported PD3.0/3.1/QC4/QC4+ (MCU+OTP + Hardwire)
Power Role DFP (Downstream-Facing Port)
SR Controller Embedded Yes
VCC Maximum Rating 24 V
VCC UVLO (V) 2.7 V

Related Content

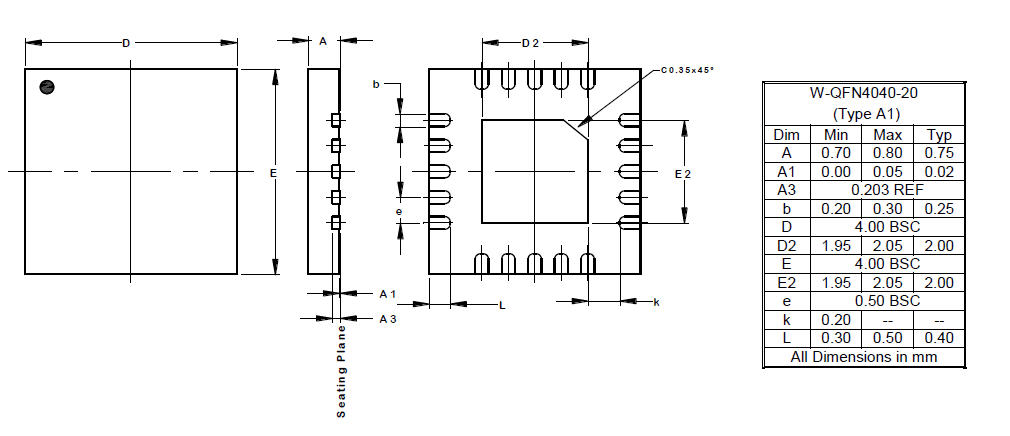

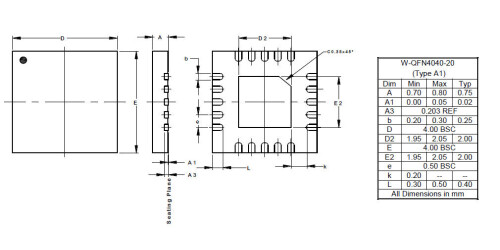

Packages

Technical Documents

Recommended Soldering Techniques

TN1.pdf

Orderable Part Number Buy from Distributor / Contact Sales Request Samples
