AP2411

2.0A Single Channel Current-Limited Power Switch With Latch-Off

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

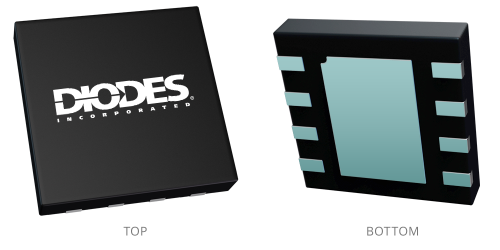

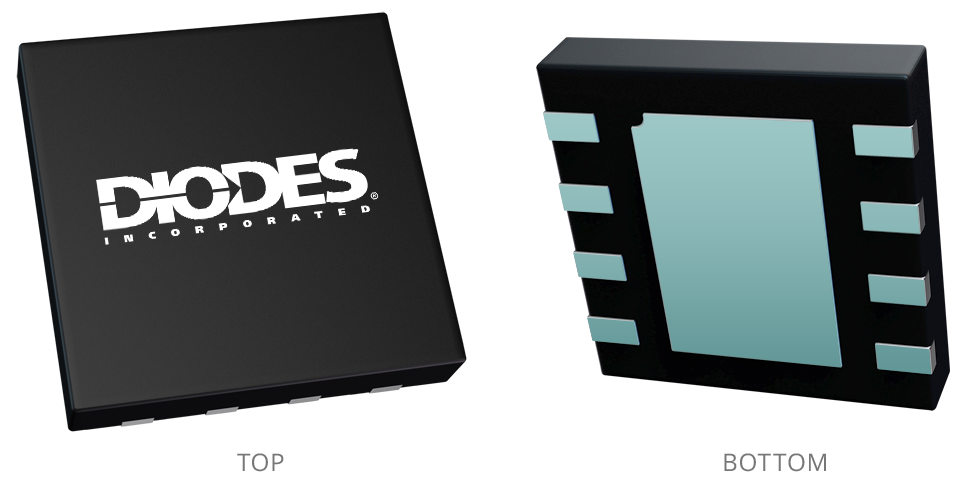

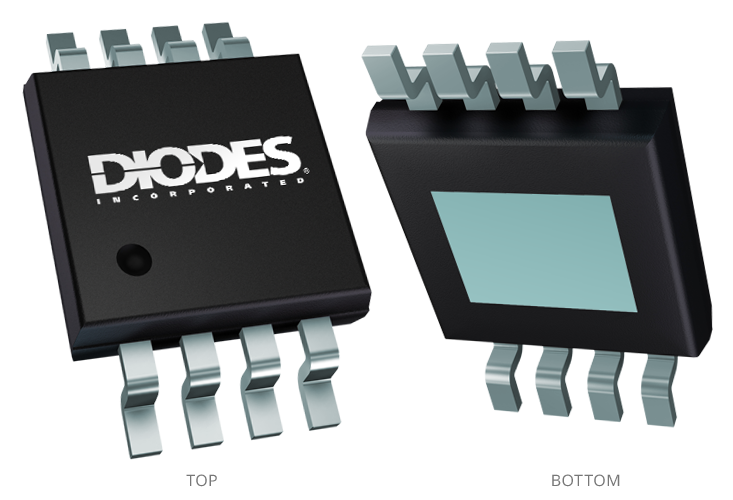

The AP2401 and AP2411 are single channel current-limited integrated high-side power switches optimized for Universal Serial Bus (USB) and other hot-swap applications. The family of devices complies with USB standards and is available with both polarities of Enable input. The devices have fast short-circuit response time for improved overall system robustness, and have integrated output discharge function to ensure completely control°C discharging of the output voltage capacitor. They provide a complete protection solution for applications subject to heavy capacitive loads and the prospect of short circuit, and offer reverse current blocking, over-current, over-temperature and short-circuit protection, as well as control°C rise time and under-voltage lockout functionality. A 7ms deglitch capability on the open-drain Flag output prevents false over-current reporting and does not require any external components. AP2401 and AP2411 will be latched off after 7ms deglitch. All devices are available in SO-8, MSOP-8EP and DFN3030-8 packages.

Application(s)

  • LCD TVs & Monitors
  • Set-Top-Boxes, Residential Gateways
  • Laptops, Desktops, Servers, e-Readers
  • Printers, Docking Stations, HUBs
  • Product Specifications

    Product Parameters

    Maximum Continuous Output Current 2 A
    Maximum Current Limit 2.85 A
    Enable Logic Active High
    Minimum Operating Voltage (V) 2.7 V
    Maximum Operating Voltage 5.5 V
    Quiescent Current Typ (mA) 60 µA
    RDS(ON) (VIN = 5V) Typ 70 mΩ
    Output Discharge Yes
    OCP Output Latch Off Yes
    OCP Flag Yes
    Operating Ambient Temperature Range (°C) -40 to 85 °C
    UL Listed Yes
    NEMKO IEC 60950-1 CB N/A

    Technical Documents

    Recommended Soldering Techniques

    TN1.pdf

    RoHS CofC

    Orderable Part Number Buy from Distributor / Contact Sales Request Samples
    AP2411AMP-13

    AP2411AMP-13

    Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
    Mouser Electronics Inc. 2150 1/20/2022 South America, North America, Asia, Europe, Middle East Buy Now
    Request Sample
    AP2411AS-13

    AP2411AS-13

    Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
    Mouser Electronics Inc. 2304 1/20/2022 South America, North America, Asia, Europe, Middle East Buy Now
    Request Sample
    AP2411FGE-7

    AP2411FGE-7

    Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
    Mouser Electronics Inc. 611 1/20/2022 South America, North America, Asia, Europe, Middle East Buy Now
    Digi-Key Electronics 1072 1/19/2022 Europe, Asia, North America Buy Now
    Request Sample
    AP2411MP-13

    AP2411MP-13

    Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
    Mouser Electronics Inc. 291 1/20/2022 South America, North America, Asia, Europe, Middle East Buy Now
    Digi-Key Electronics 22316 1/19/2022 Europe, Asia, North America Buy Now
    RS Components - Spain 1975 1/19/2022 Spain Contact Sales
    RS Components - UK 1975 1/19/2022 England Buy Now
    Request Sample
    AP2411S-13

    AP2411S-13

    Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
    Arrow Electronics 2252 1/20/2022 United States Buy Now
    Mouser Electronics Inc. 3561 1/20/2022 South America, North America, Asia, Europe, Middle East Buy Now
    Digi-Key Electronics 19583 1/19/2022 Europe, Asia, North America Buy Now
    Farnell, An Avnet Company 4990 1/19/2022 England Buy Now
    Future Electronics 2500 1/19/2022 Canada Buy Now
    Request Sample
    AP2411SN-7

    AP2411SN-7

    Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
    Digi-Key Electronics 2844 1/19/2022 Europe, Asia, North America Buy Now
    Request Sample

    PCNs

    Product Change Notices

    PCN # Issue Date Implementation Date Subject
    PCN-2512 2021-04-16 2021-07-16 Qualified Additional Assembly & Test (A/T) Site
    PCN-2429 2019-11-20 2020-02-20 Additional Qualified (AT) Assembly Test Site + BOM + Top Marking
