1A Low Noise CMOS LDO Regulator with ENABLE

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

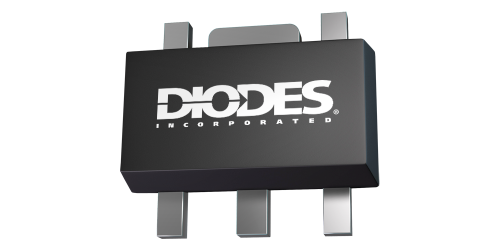

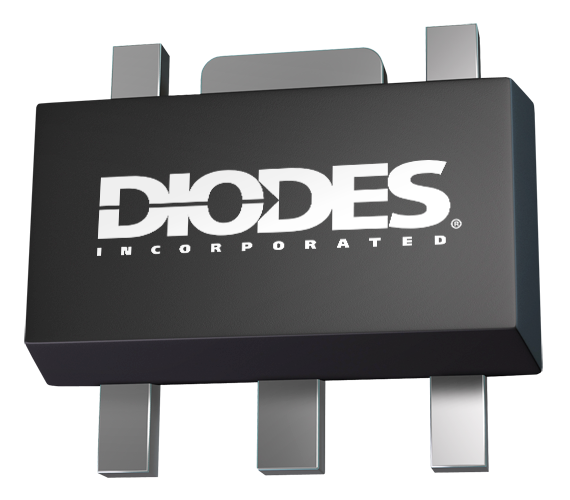

The AP2115 is CMOS process low dropout linear regulator with enable function, the regulator delivers a guaranteed 1A (min.) continuous load current. The AP2115 features low power consumption. The AP2115 is available in 1.2V, 1.8V, 2.5V and 3.3V regulator output, and available in excellent output accuracy ±1.5%, it is also available in an excellent load regulation and line regulation performance. The AP2115 is available in standard packages of SOIC-8 and SOT-89-5.


  • Output Voltage Accuracy: ±1.5%
  • Output Current: 1A (Min.)
  • Fold-back Short Current Protection: 50mA
  • Low Dropout Voltage (3.3V): 450mV (Typ.) @ IOUT=1A
  • Stable with 4.7μF Flexible Cap: Ceramic, Tantalum and Aluminum Electrolytic
  • Excellent Line Regulation: 0.02%/V (Typ.), 0.1%/V (Max.) @ IOUT=30mA
  • Excellent Load Regulation: 0.2%/A @ IOUT=1mA to 1A
  • Low Quiescent Current: 60μA (1.2V/1.8V/ 2.5V)
  • Low Output Noise: 30μVRMS
  • PSRR: 68dB @ Freq=1kHz (1.2V/1.8V)
  • OTSD Protection
  • Operation Temperature Range: -40°C to 85°C
  • ESD: MM 400V, HBM 4000V
  • Application(s)

  • LCD Monitor
  • LCD TV
  • STB
  • Product Specifications

    Product Parameters

    Compliance (Only Automotive supports PPAP) Standard
    Output options Fixed
    Iout (A) 1
    Vin (Max) (V) 6
    Vin (Min) (V) 2.5
    Vout (min) 1.2
    Vout (max) 3.3
    Fixed Vout (V) 1.2, 1.8, 2.5, 3.3
    Iq (typ) (µA) 60
    Accuracy 25C 1.50%
    Noise uV RMS 10-100 kHz 30
    VDROPOUT (Max) (V) at Max Current and Max Ouput Voltage 0.75
    PSRR (dB) 1kHz 65
    Operating Temperature (Ambient) (°C) -40 to 85 (°C)
    Enable Active H
    Channels 1
    Output Discharge yes
    Iq (max)(µA) 75
    VCTL function no

    Related Content


    Technical Documents

    Recommended Soldering Techniques


    RoHS CofC

    Orderable Part Number Buy from Distributor / Contact Sales Request Samples


    Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
    Avnet EU 4000 6/25/2022 Germany Buy Now
    Arrow Electronics 4000 6/25/2022 United States Buy Now
    Digi-Key Electronics 3487 6/25/2022 Europe, Asia, North America Buy Now
    Farnell, An Avnet Company 3944 6/25/2022 England Buy Now
    Mouser Electronics Inc. 30 6/25/2022 South America, North America, Asia, Europe, Middle East Buy Now
    Request Sample


    Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
    Avnet EU 2000 6/25/2022 Germany Buy Now
    Request Sample

    Product Change Notices (PCNs)

    A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

    PCN # Issue Date Implementation Date Subject
    PCN-2568 2022-03-29 2022-03-29 Qualified Additional Assembly & Test (A/T) Sites, Bill of Material, and updated Data Sheets for Package Outline Dimension Change
    PCN-2539 2021-09-09 2022-03-09 Device End of Life (EOL)
    PCN-2512 2021-04-16 2021-07-16 Qualified Additional Assembly & Test (A/T) Site
    PCN-2308 2017-12-22 2018-03-22 Additional FAB Source (Chipbond LH), and Assembly/Test Site (SAT/Unisem) on Select Devices
