74LVC1G04

Inverter

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The 74LVC1G04 is a single inverter gate with a standard totem pole output. The device is designed for operation with a power supply range of 1.65V to 5.5V. The inputs are tolerant to 5.5V allowing this device to be used in a mixed voltage environment. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output preventing damaging current backflow when the device is powered down.

Feature(s)

  • Wide Supply Voltage Range from 1.65 to 5.5V
  • ± 24mA Output Drive at 3.3V
  • CMOS low power consumption
  • IOFF Supports Partial-Power-Down Mode Operation
  • Inputs accept up to 5.5V
  • ESD Protection Exceeds JESD 22
  • 200-V Machine Model (A115-A)
  • 2000-V Human Body Model (A114-A)
  • 1000-V Charged-Device Model (C101)
  • Latch-Up Exceeds 100mA per JESD 78, Class II
  • Range of Package Options
  • Direct Interface with TTL Levels
  • All packages assemb°C with “Green” Molding Compound (no Br, Sb)
  • Lead Free Finish/ RoHS Compliant

Application(s)

  • Voltage Level Shifting
  • General Purpose Logic
  • Power Down Signal Isolation
  • Wide array of products such as.
  • PCs, networking, notebooks, netbooks, PDAs
  • Computer peripherals, hard drives, CD/DVD ROM
  • TV, DVD, DVR, set top box
  • Cell Phones, Personal Navigation / GPS
  • MP3 players ,Cameras, Video Recorders

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) Standard
Description Inverter, 1 Input
Family LVC
VCC Min (V) 1.65
VCC Max (V) 5.5
Output Type Push-Pull
tpd max @ 1.8V (ns) 7.5
tpd max @ 2.5V (ns) 5.2
tpd max @ 3.3V (ns) 4.2
tpd max @ 5.0V (ns) 3.7
Output Current (A) 32

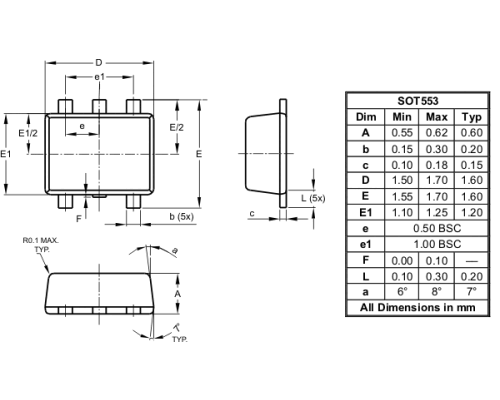

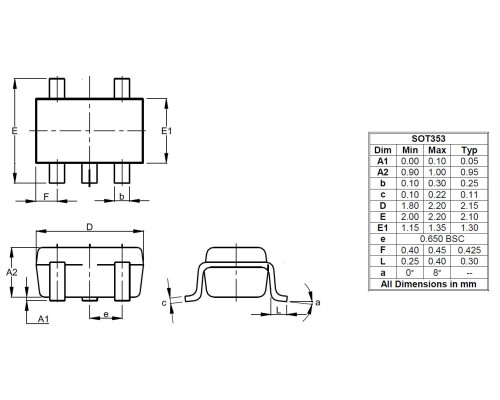

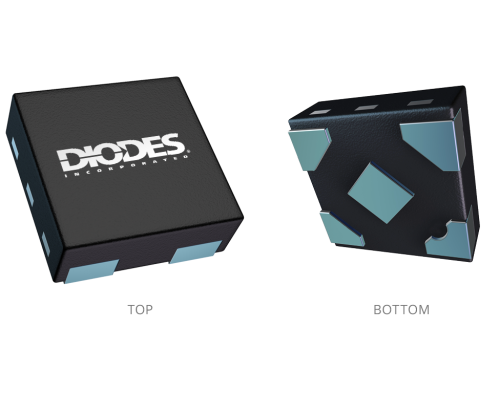

Packages SOT25, SOT353, SOT553, X2-DFN0808-4, X2-DFN1010-6, X2-DFN1409-6, X2-DFN1410-6

Technical Documents

Recommended Soldering Techniques

TN1.pdf

Orderable Part Number Buy from Distributor / Contact Sales Request Samples
74LVC1G04FS3-7

74LVC1G04FS3-7

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Digi-Key Electronics 4261 11/30/2022 Europe, Asia, North America Buy Now
Mouser Electronics Inc. 3214 11/30/2022 South America, North America, Asia, Europe, Middle East Buy Now
Request Sample
74LVC1G04FW4-7

74LVC1G04FW4-7

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Arrow Electronics 4755 11/30/2022 United States Buy Now
Digi-Key Electronics 996 11/30/2022 Europe, Asia, North America Buy Now
Farnell, An Avnet Company 5000 11/30/2022 England Buy Now
Mouser Electronics Inc. 6318 11/30/2022 South America, North America, Asia, Europe, Middle East Buy Now
Request Sample
74LVC1G04FW5-7

74LVC1G04FW5-7

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Digi-Key Electronics 56 11/30/2022 Europe, Asia, North America Buy Now
Mouser Electronics Inc. 3954 11/30/2022 South America, North America, Asia, Europe, Middle East Buy Now
Request Sample
74LVC1G04FX4-7

74LVC1G04FX4-7

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Digi-Key Electronics 5000 11/30/2022 Europe, Asia, North America Buy Now
Request Sample
74LVC1G04FZ4-7

74LVC1G04FZ4-7

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Digi-Key Electronics 1263 11/30/2022 Europe, Asia, North America Buy Now
Mouser Electronics Inc. 12425 11/30/2022 South America, North America, Asia, Europe, Middle East Buy Now
Request Sample
74LVC1G04QW5-7

74LVC1G04QW5-7

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Digi-Key Electronics 2055 11/30/2022 Europe, Asia, North America Buy Now
Farnell, An Avnet Company 2985 11/30/2022 England Buy Now
RS Components - Spain 5700 11/30/2022 Spain Contact Sales
RS Components - UK 5700 11/30/2022 England Buy Now
Request Sample
74LVC1G04SE-7

74LVC1G04SE-7

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Arrow Electronics 500 11/30/2022 United States Buy Now
Arrow Electronics Central EU 42000 11/30/2022 Europe Buy Now
Digi-Key Electronics 24623 11/30/2022 Europe, Asia, North America Buy Now
Farnell, An Avnet Company 2950 11/30/2022 England Buy Now
Mouser Electronics Inc. 807 11/30/2022 South America, North America, Asia, Europe, Middle East Buy Now
Future Electronics - Europe 36000 11/29/2022 England Contact Sales
Request Sample
74LVC1G04W5-7

74LVC1G04W5-7

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Arrow Electronics 5 11/30/2022 United States Buy Now
Farnell, An Avnet Company 1640 11/30/2022 England Buy Now
RS Components - Spain 11400 11/30/2022 Spain Contact Sales
RS Components - UK 11400 11/30/2022 England Buy Now
Future Electronics - Europe 129000 11/29/2022 England Contact Sales
Request Sample
74LVC1G04Z-7

74LVC1G04Z-7

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Arrow Electronics 4008 11/30/2022 United States Buy Now
Digi-Key Electronics 180015 11/30/2022 Europe, Asia, North America Buy Now
Mouser Electronics Inc. 3999 11/30/2022 South America, North America, Asia, Europe, Middle East Buy Now
RS Components - Spain 250 11/30/2022 Spain Contact Sales
RS Components - Spain 400 11/30/2022 Spain Contact Sales
RS Components - UK 250 11/30/2022 England Buy Now
RS Components - UK 400 11/30/2022 England Buy Now
Request Sample

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2299 2018-03-01 2018-06-01 Additional Qualified (A/T) Assembly Test Site
