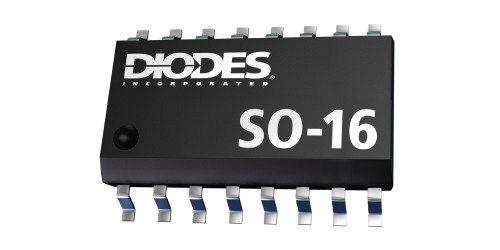

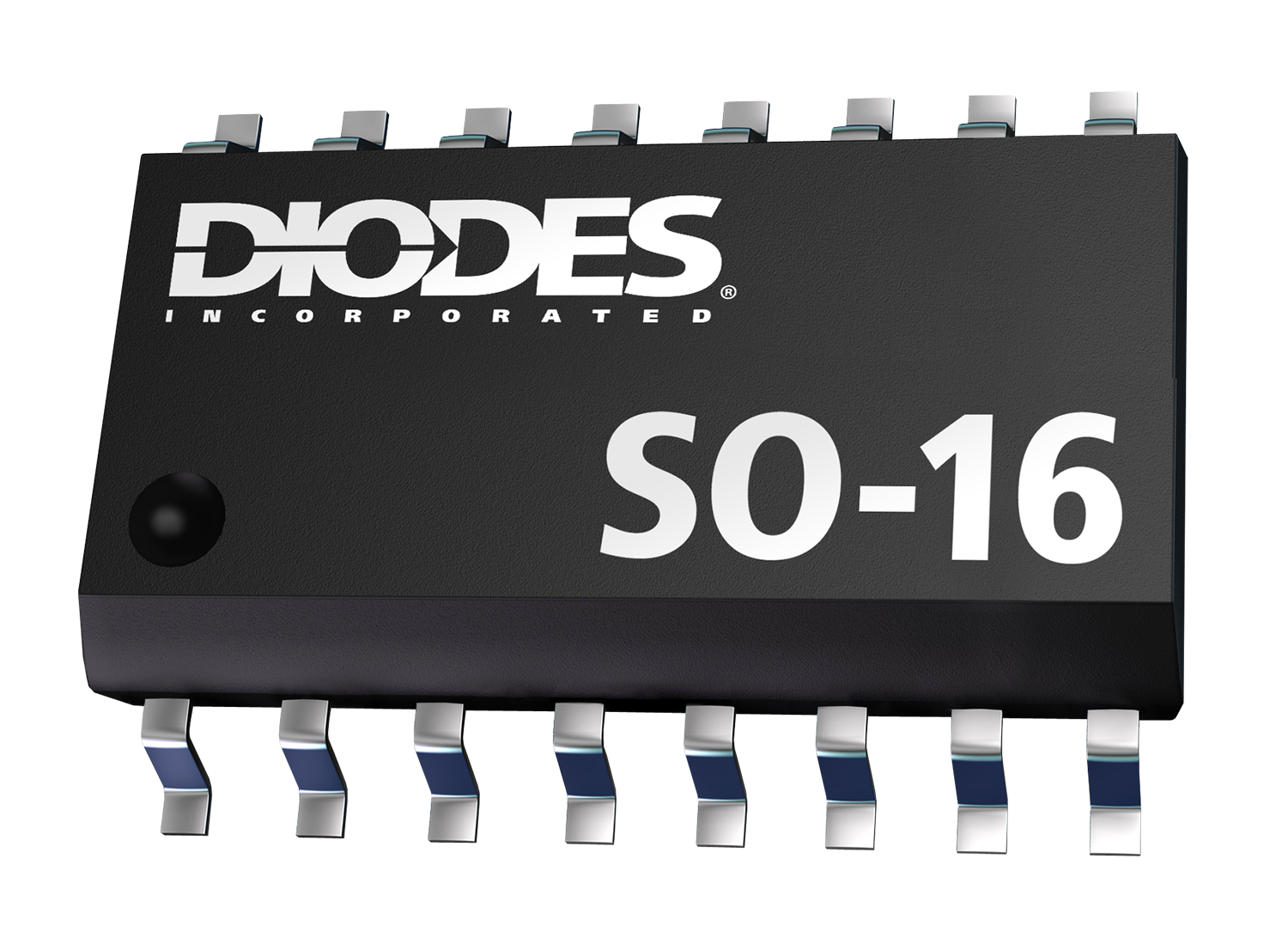

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Logic Master Table

74HC594

8-Bit Shift Register 8-Bit Output Register

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The 74HC594 is a high speed CMOS device. An eight bit shift register accpets data from the serial input (DS) on each positive transition of the shift register clock (SHCP). When asserted low the shift regisister reset function ( ) sets all shift register values to zero and is indepent of all clocks. Also when asserted low the storage register reset function ( ) sets all shift register values to zero and is indepent of all clocks Data from the input serial shift register is placed in the output register with a rising pulse on the storages resister clock.(STCP). The storage resister includes output Q7S which is used for cascading information between devices. As the information moves into the storage register, it is asserted on the push-pull outputs Q0-Q7. All registers capture data on rising edge and change output on the falling edge. If both clocks are connected together the input shift register is always one clock cycle ahead of the output register.

Application(s)

  • General Purpose Logic
  • Serial to Parallel Data conversion
  • Capture and hold data for extended periods of time.
  • Allow simple serial bit streams from a microcontroller to control as many peripheral lines as needed.
  • Wide array of products such as: - Computer peripherals - Appliances - Industrial control
  • Product Specifications

    Product Parameters

    Number of Gates -
    Family HC
    VCC Min (V) 2 V
    VCC Maximum Rating 6 V
    tpd max @ (1.5V) - ns
    tpd max @ 1.8V (ns) - ns
    tpd max @ 2.5V (ns) 155 ns
    tpd max @ 3.3V (ns) - ns
    tpd max @ 5.0V (ns) 31 ns
    Input/ Output Current 4
    Description 8-Bit Shift Register 8-Bit Output Register
    Output Type Push-Pull

    Related Content

    Packages

    Technical Documents

    Recommended Soldering Techniques

    TN1.pdf

    Orderable Part Number Buy from Distributor / Contact Sales Request Samples
    74HC594S16-13

    74HC594S16-13

    Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
    Mouser Electronics Inc. 115 10/4/2022 South America, North America, Asia, Europe, Middle East Buy Now
    Digi-Key Electronics 11401 10/3/2022 Europe, Asia, North America Buy Now
    Request Sample

    Product Change Notices (PCNs)

    A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

    PCN # Issue Date Implementation Date Subject
    PCN-2447 2020-01-30 2020-04-30 Additional Qualified (FAB) Wafer Fab Source, (A/T) Assembly/Test Site, and (BOM) Bill of Materials
