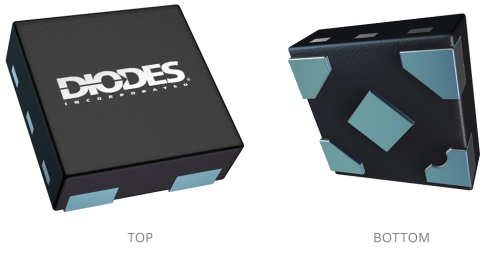

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Logic Master Table


Inverter, Open Drain

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.


The Advanced Ultra Low Power (AUP) CMOS logic family is designed for low power and extended battery life in portable applications. The 74AUP1G06 is a single inverter with an open drain output designed for operation over a power supply range of 0.8V to 3.6V. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output preventing damaging current backflow when the device is powered down.


  • Advanced Ultra Low Power (AUP) CMOS
  • Supply Voltage Range from 0.8V to 3.6V
  • ±4mA Output Drive at 3.0V
  • Low Static power consumption


  • Suited for battery and low power needs
  • Wide array of products such as:

Product Specifications

Product Parameters

Function Inverter
Type Buffers/Inverters/Transceivers
Compliance (Only Automotive supports PPAP) Standard
Channels 1
Family AUP
VCC Min (V) 0.8
VCC Max (V) 3.6
Input Type Standard CMOS
Output Type Open-Drain
Output Current (mA) 4

Technical Documents

Recommended Soldering Techniques


Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2299 2018-03-01 2018-06-01 Additional Qualified (A/T) Assembly Test Site
