  • Fast switching device (trr < 4.0 ns)

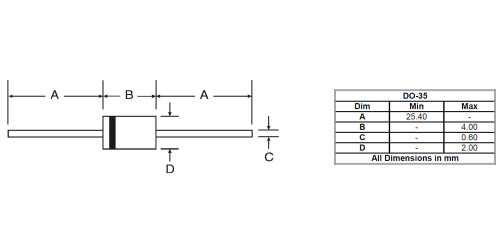

  • DO-35 package (JEDEC)
  • Through-hole device type mounting
  • Hermetically sealed glass
  • Compression bonded construction
  • All external surfaces are corrosion resistant and terminals are readily solderable
  • RoHS compliant
  • Solder hot dip Tin(Sn) terminal finish
  • Lead-Free Finish; RoHS Compliant
  • Halogen and Antimony Free. “Green” Device

Product Specifications

Product Parameters

AEC Qualified No
Compliance (Only Automotive supports PPAP) Standard
Configuration Single
Polarity Anode, Cathode
Power Rating (mW) 400 mW
ESD Diodes (Y|N) No
Peak RepetitiveReverse VoltageVRRM (V) 75 V
Reverse Recovery Time trr (ns) 4 ns
Maximum Average Rectifier Current IO (mA) 150 mA
Maximum Peak Forward Surge Current IFSM (A) 2 A
Forward Voltage Drop VF @ IF (mA) 10 mA
Maximum ReverseCurrent IR (µA) 5 µA
V(BR)R (V) Min @IR=100?A 75
Trr(ns) Max @ IF=IR=10 mA, Irr=0.1xIR, RL=100? 4
Maximum Reverse Current IR @ VR (V) 75 V
VF(V) Max @ IF=10mA 1
IR(uA) Max @ VR=80V 5uA@75V
CT(pF) Max @ VR = 0V, f = 1MHz 4
