Package: UQFN (ZTF34) MSL1

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

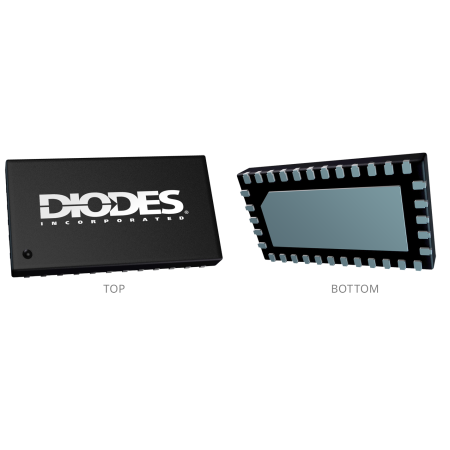

U QFN2545 34 3D image

34-Contact, Ultra Thin Quad Flat No Lead ( UQFN )

CodeZTF
NameUQFN (ZTF34) MSL1
POD NumberPD-2230--
JEDEC Pub 95MO-288
Pin Pitch (MM)0.35
Length (MM)4.5
Width (MM)2.5
Height (MM)0.6
Theta JA (still air) °C/Watt36.42
ThetaJC (°C/Watt)8.45
Package File ZTF34.pdf
Products using this package

Parts Icon PI3EQX1004E Parts Icon PI3EQX1014 Parts Icon PI3EQX2024 Parts Icon PI3USB31534
