Package: X2QFN (XUA12) MSL1 Sn

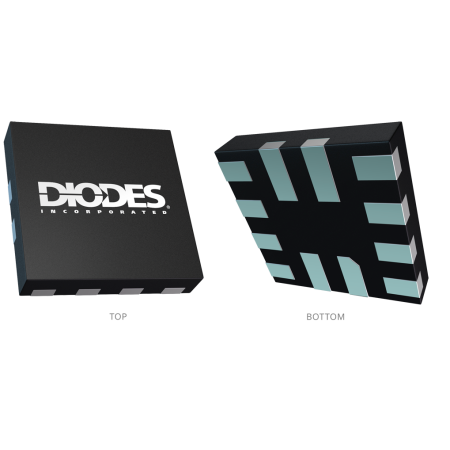

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

X2 QFN1616 12
NameX2QFN (XUA12) MSL1 Sn
POD NumberPD-2167
JEDEC Pub 95MO-288
Pin Pitch (mm)0.4
Length (mm)1.6
Width (mm)1.6
Height (mm)0.4
Theta JA (still air) °C/Watt155
Theta JC (°C/Watt)69.34
Package File XUA12.pdf
Package Qualification Report (Au) XUA18-XUA12-XUA10-MSL1-Au.pdf
Products using this package

Parts Icon PI2EQX511E Parts Icon PI3USB3031 Parts Icon PI5USB212 Parts Icon PI5USB30216A Parts Icon PI5USB30216C Parts Icon PI5USB30216D
