Package: aQFN (ZX136) MSL3 PPF

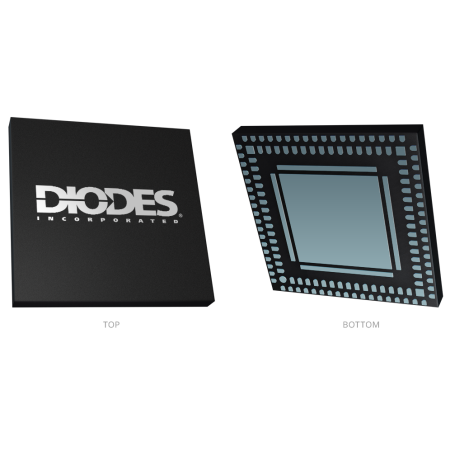

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.
| Code | ZX |
|---|---|
| Name | aQFN (ZX136) MSL3 PPF |
| POD Number | PD-2098 A |
| Pin Pitch (mm) | 0.4 |
| Length (mm) | 8 |
| Width (mm) | 8 |
| Height (mm) | 0.85 |
| Theta JA (still air) °C/Watt | 56.8 |
| Theta JC (°C/Watt) | 13.6 |
| Package File | Pd-2098.pdf |
| Package Qualification Report (Cu) | ZX136-MSL3-Cu.pdf |
| Products using this package |
PI7C9X2G303EL
