Package: W-QFN5050-32 (ZH32) MSL1 PPF

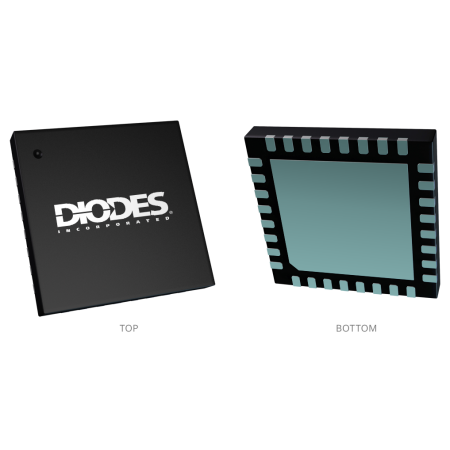

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

W QFN5050 32
CodeZH
NameW-QFN5050-32 (ZH32) MSL1 PPF
POD NumberPD-2070C
JEDEC Pub 95MO-220
Pin Pitch (mm)0.5
Length (mm)5
Width (mm)5
Height (mm)0.8
Theta JA (still air) °C/Watt34.4
Theta JC (°C/Watt)15
Package File PD-2070E_ZH32.pdf
Package Qualification Report (Au) ZH42_ZH32_MSL1_Au.pdf
Package Qualification Report (Cu) ZB56-ZD48-ZD40-ZH42-ZH32-ZH28-ZF36-ZF54-ZL64-MSL2-Cu.pdf
Material Declaration Report (Au) ZH32NiPaAuMDRAu.pdf
Products using this package

Parts Icon PI6C49S1504T Parts Icon PI6CB33401 Parts Icon PI6CB33402 Parts Icon PI6CBE33045 Parts Icon PI6CG33401C Parts Icon PI6CG33402C Parts Icon PI7C9X1172 Parts Icon PI7C9X762
